Product Details
What Is the Clean Room Partition System?

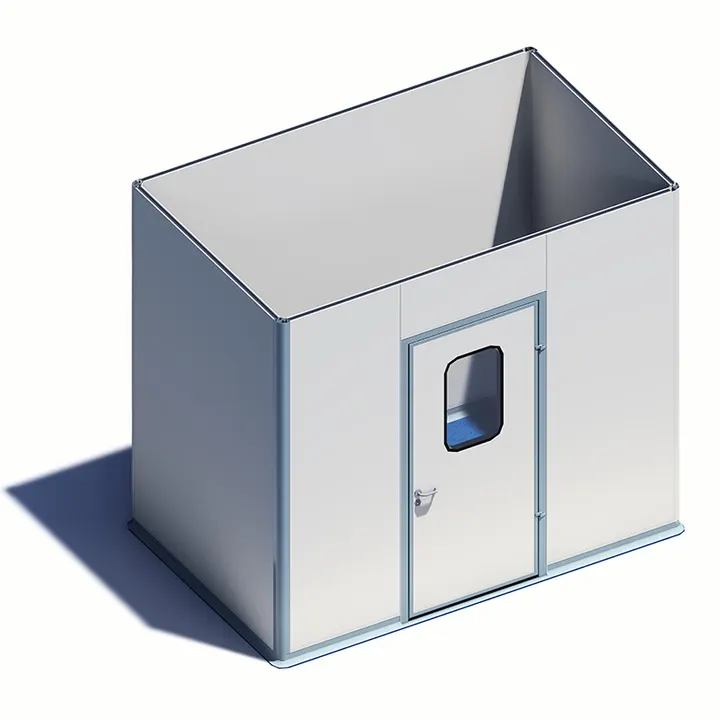

It is an integrated modular system made of standardized sandwich panels, sealing profiles and structural supports that together create certified cleanroom spaces with airtight barriers, smooth cleanable surfaces and thermal insulation. The right-angle 90° connection makes installation fast, solid and economical, and the system supports different cleanliness levels (ISO Class 5–8) for flexible space design. It is the cost-effective choice for large-scale industrial workshops; for rounded hygienic corners see the medical cleanroom panel, and for frequent layout changes the demountable partition wall.

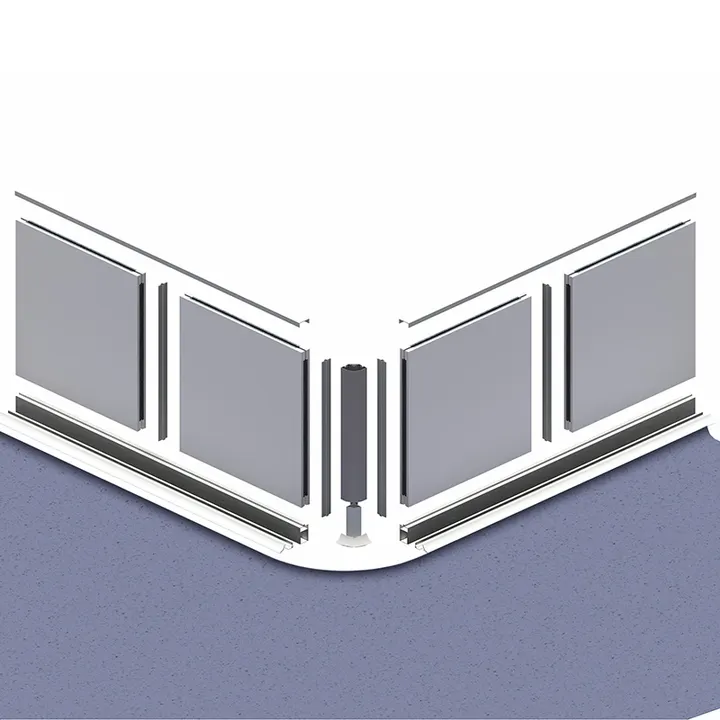

The Right-Angle (90°) Connection

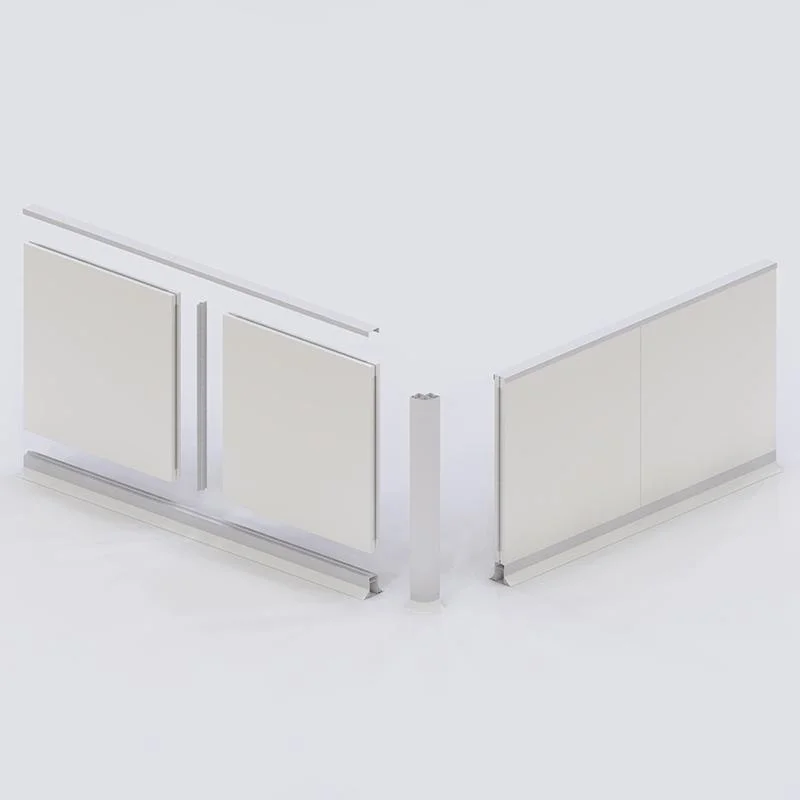

Ceiling-to-partition, partition-to-floor and partition corners are all joined at a simple 90° angle — a direct, solid alignment that is quick to install and low cost, while sealing profiles keep the wall airtight.
Right-Angle vs Coved Connection
| Feature | Right-Angle Partition | High-Cleanliness Coved System |
|---|---|---|
| Installation | Very simple (direct alignment) | Complex (radius profiles) |
| Initial cost | Low / economical | Premium |
| Structural stability | Solid & firm | High |
| Best use case | Industrial workshops / electronics | Pharmaceutical / medical labs |
Specifications
| Available thickness | 50 / 75 / 100 mm (other thicknesses customizable) |
| Core options | Rock wool · PU · PIR (MGO / EPS available) |
| Facing | Pre-coated / galvanized steel, stainless steel or HPL |
| Connection | Right-angle 90° profiles with sealing for airtight joints |
| Fire performance | Rock wool core non-combustible; rock wool partition tested to GB/T 9978 |
| Main application | Industrial cleanroom workshops (electronics, semiconductor, mechanical) |
Key Advantages
Planning a large biotech or industrial line? See our briefing: Prefabricated Modular Laboratory Infrastructure Shipments Surge (2026).

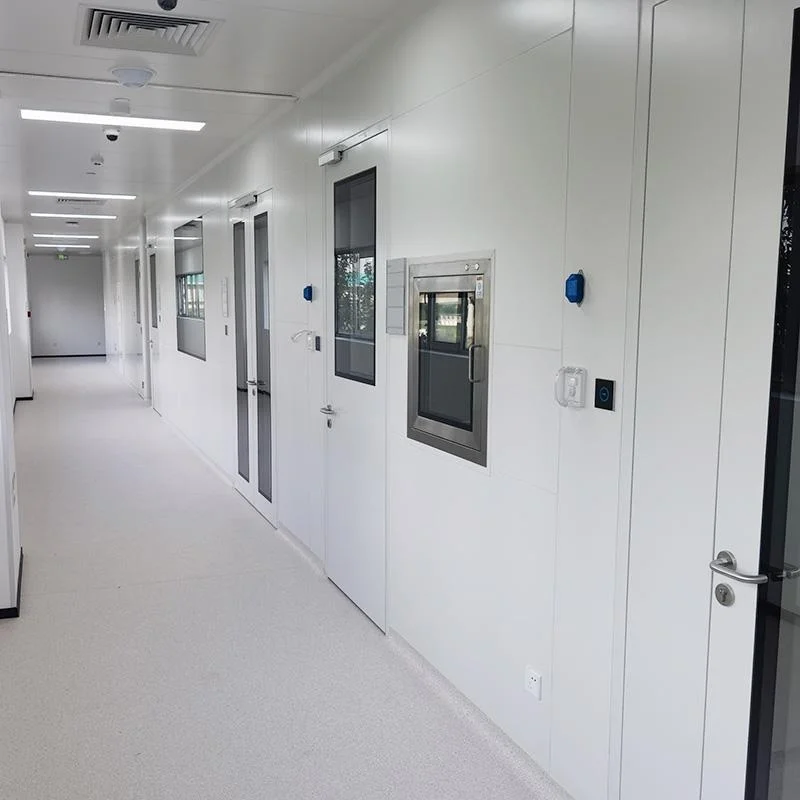

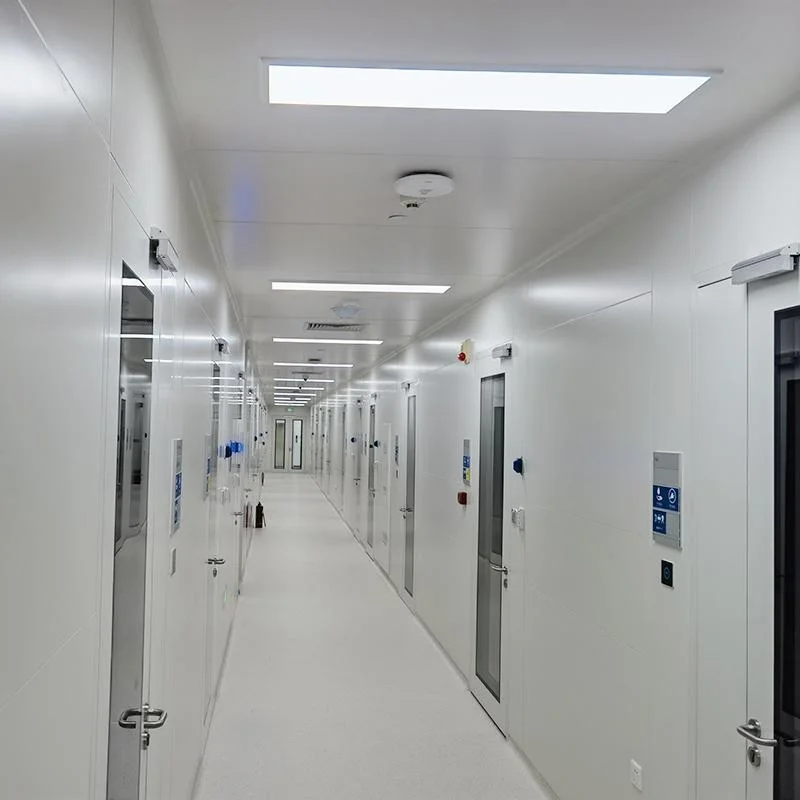

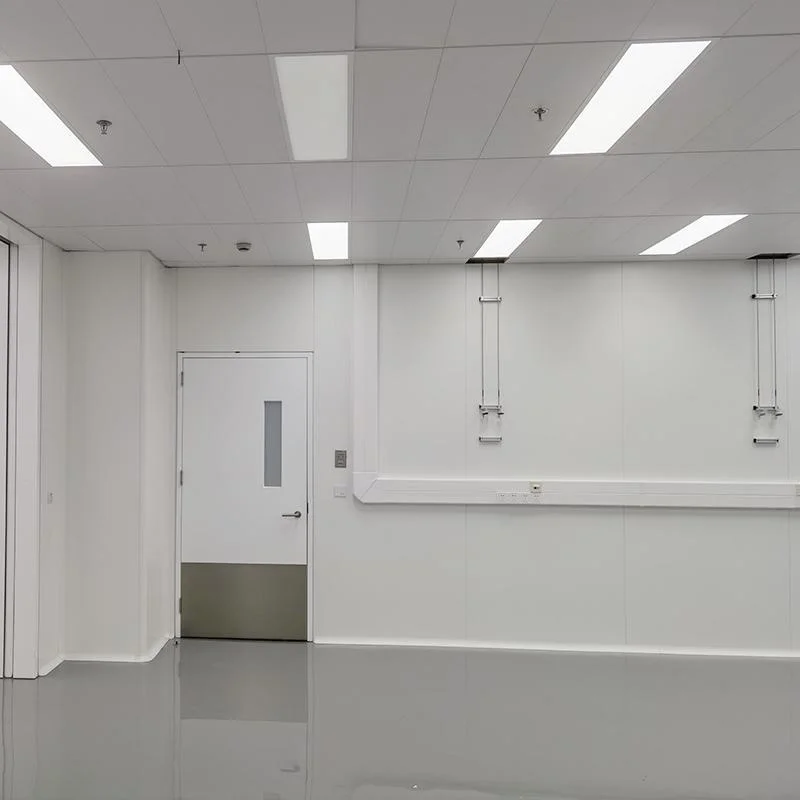

Partition System Projects
Technical Insights & FAQ
Why use a 90° right-angle system for semiconductor and electronics factories?
These workshops usually have large floor areas where installation speed and cost matter most. The right-angle system is solid, quick to install and economical, while still meeting their standard cleanliness requirements.
Can the core be customized for better fire resistance?
Yes. Choose a non-combustible rock wool core, or PIR for a balance of fire performance and thermal insulation, based on your engineering needs.
When should I choose right-angle vs coved corners?
Right-angle is the economical, fast choice for industrial workshops with standard cleanliness. For pharmaceutical or medical rooms that need rounded, dust-free corners, choose our coved medical panel system.
Is the system compatible with other modular components?
Yes. Like all Wonclean modular systems, the partitions integrate with our ceiling and flooring systems for a seamless industrial fit-out.
What thicknesses and ISO classes are supported?
Standard thicknesses are 50, 75 and 100 mm (others customizable), and the system can be configured for ISO Class 5–8 depending on the panels, sealing and HVAC design.
Get Your Partition System Quote
Tell us your workshop area, cleanliness level, core material and thickness. Our engineers recommend the right-angle build and send a competitive factory-direct price. Typical reply within 24 hours.
