Chip handling often looks simple: pick up a device, inspect it and move it to the next station. In practice, every exposed surface can be affected by particles from operators, packaging, tools and nearby equipment. The room must make the correct handling sequence easy to follow.

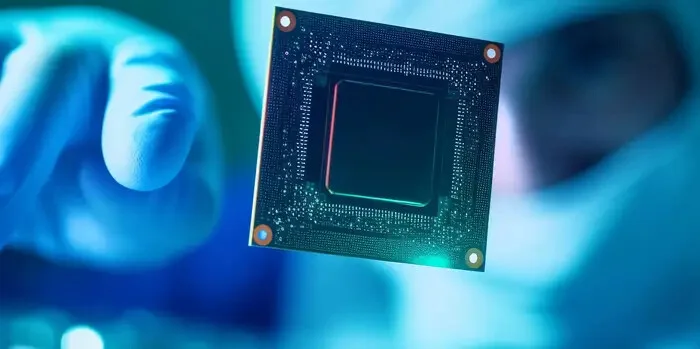

The image below is an illustrative close view of a semiconductor component held by a gloved operator. It does not show a Wonclean project or verify a product type, yield, cleanliness class or electrostatic-control result.

Product Risk

Start With the Exposed Surface and Failure Mode

A semiconductor clean room should be designed from the risks that matter to the device. Particle size, surface sensitivity, moisture exposure, electrostatic discharge and chemical contamination can require different controls. A room classification alone does not describe all of them.

The process map should identify where the device leaves protective packaging, how long it remains exposed and which tools touch it. Inspection, rework and temporary staging deserve the same attention as the main production step because handling frequently increases during these activities.

Handling Method

Control Every Contact Point

Gloves reduce direct contact, but they do not automatically make handling safe. Glove material, change frequency and the way operators touch packaging should follow the process. Tweezers, trays and vacuum tools also need defined materials, cleaning methods and storage positions.

Tools should return to a protected location instead of lying on a general work surface. Clear clean and used status prevents a tool from moving contamination between stations. Where traceability matters, tool identification can be included in the operating record.

Airflow

Keep Supply Air and Return Paths Clear

A clean room ffu arrangement should support the exposed work zone and the heat released by equipment. Filter coverage must be considered together with benches, microscopes, machine enclosures and operator positions. Large objects can redirect air even when the ceiling looks evenly populated.

Return openings should remain visible and unobstructed. Trays, carts and packaging should not be stored in front of low-level returns. A balanced path from supply to return helps remove particles instead of recirculating them around the component.

Static Control

Coordinate Grounding With the Room Interior

Electrostatic control involves the operator, work surface, floor, tools, packaging and equipment. Grounding points need known locations and inspection access. Cables should not cross cleaning routes or create loose loops near moving parts.

Temperature and humidity may influence both product handling and operator comfort, but setpoints must follow the approved process requirements. Room finishes and furniture should be reviewed for their electrical behavior and compatibility with the cleaning program.

Room Boundaries

Use Visibility to Reduce Unnecessary Entry

A cleanroom glass wall can let supervisors observe work without entering the controlled zone. Flush glazing, sealed frames and compatible gaskets keep the boundary cleanable. The viewing angle should support the real task without creating distracting reflections.

Doors, pass-throughs and service panels should match the traffic pattern. Frequent small transfers should not require opening a large personnel door, and maintenance access should avoid exposing work in progress.

Transfer and Staging

Separate Incoming, In-Process and Rejected Material

Containers and trays should have assigned staging positions. Incoming parts, inspected parts and rejected items need clear separation so status is obvious at a glance. A defined route reduces unnecessary handling and supports traceability.

When batches move on trolleys, the wheels, shelves and covers should suit the cleaning method. Parking zones must stay outside return-air paths, door swings and emergency routes.

Design Checklist

What to Confirm Before Setting Up a Handling Zone

Operation

Make Correct Handling the Easiest Routine

Operator training should cover gowning, glove changes, tool cleaning, material status and abnormal events. Visual controls can show where trays, tools and waste belong without adding clutter to the workstation.

Supervisors should review recurring workarounds. If operators constantly move a tray, block a return or stretch across a bench, the physical layout may be working against the procedure.

Verification

Confirm Performance With Documented Tests

Verification may include particle measurements, airflow checks, pressure review, environmental monitoring and electrostatic-control tests according to the approved quality plan. Test conditions should describe occupancy, equipment state and the room layout.

After a major tool or workstation change, review the affected air paths, grounding and cleaning access. Photographs alone cannot establish product protection or process capability.

Wonclean Support

Cleanroom Interiors for Semiconductor Handling Areas

Wonclean supports semiconductor projects with modular walls, ceilings, doors, glazed partitions and equipment interfaces. Early coordination can align the enclosure with airflow, workstations, transfer routes and future process changes.
